Flanges Dimensions

150 LB. FLANGES

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face

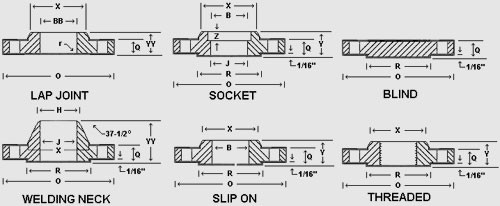

	O	Q	Y			Diam.	No.	dia.	R
1/2	89	11.2	47.6	15.9	15.9	60.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	15	43
1	108	14.3	55.6	17.5	17.5	79.5	4	15	51
1.1/4	117	15.9	57.2	20.6	20.6	89.0	4	15	64
1.1/2	127	17.5	61.9	22.2	22.2	98.5	4	15	73
2	152	19.1	63.5	25.4	25.4	120.5	4	19	92
2.1/2	178	22.3	69.8	28.6	28.6	139.5	4	19	105
3	190	23.9	69.8	30.2	30.2	152.5	4	19	127
3.1/2	216	23.9	71.4	31.8	31.8	178.0	8	19	140
4	229	23.9	86.2	33.3	33.3	190.5	8	19	157
5	254	23.9	88.9	36.5	36.5	216.0	8	22	186
6	279	25.4	88.9	39.7	39.7	241.5	8	22	216
8	343	28.6	101.6	44.4	44.4	298.5	8	22	270
10	406	30.2	101.6	49.2	49.2	362.0	12	25	324
12	483	31.8	114.3	55.6	55.6	432.0	12	25	381
14	533	35.0	127.0	57.2	79.4	476.0	12	29	413
16	597	36.6	127.0	63.5	87.3	539.5	16	29	470
18	635	39.7	139.7	68.3	96.8	578.0	16	32	533
20	698	42.9	144.5	73.0	103.2	635.0	20	32	584
24	813	47.7	152.4	82.6	111.1	749.5	20	35	692
Top

300 LB. FLANGES

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face
	O	Q	Y			Diam.	No.	dia.	R
1/2	89	11.2	47.6	15.9	15.9	60.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	15	43
1	108	14.3	55.6	17.5	17.5	79.5	4	15	51
1.1/4	117	15.9	57.2	20.6	20.6	89.0	4	15	64
1.1/2	127	17.5	61.9	22.2	22.2	98.5	4	15	73
2	152	19.1	63.5	25.4	25.4	120.5	4	19	92
2.1/2	178	22.3	69.8	28.6	28.6	139.5	4	19	105
3	190	23.9	69.8	30.2	30.2	152.5	4	19	127
3.1/2	216	23.9	71.4	31.8	31.8	178.0	8	19	140
4	229	23.9	86.2	33.3	33.3	190.5	8	19	157
5	254	23.9	88.9	36.5	36.5	216.0	8	22	186
6	279	25.4	88.9	39.7	39.7	241.5	8	22	216
8	343	28.6	101.6	44.4	44.4	298.5	8	22	270
10	406	30.2	101.6	49.2	49.2	362.0	12	25	324
12	483	31.8	114.3	55.6	55.6	432.0	12	25	381
14	533	35.0	127.0	57.2	79.4	476.0	12	29	413
16	597	36.6	127.0	63.5	87.3	539.5	16	29	470
18	635	39.7	139.7	68.3	96.8	578.0	16	32	533
20	698	42.9	144.5	73.0	103.2	635.0	20	32	584
24	813	47.7	152.4	82.6	111.1	749.5	20	35	692
Top

600 LB. FLANGES

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face
	O	Q	Y			Diam.	No.	dia.	R
1/2	95	14.3	52.4	22.2	22.2	66.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	19	43
1	124	17.5	61.9	27.0	27.0	89.0	4	19	51
1-1/4	133	20.7	66.7	28.6	28.6	98.5	4	19	64
1-1/2	156	22.3	69.8	31.8	31.8	114.5	4	22	73
2	165	25.4	73.0	36.5	36.5	127.0	8	19	92
2-1/2	190	28.6	79.4	41.3	41.3	149.0	8	22	105
3	210	31.8	82.6	46.0	46.0	168.0	8	22	127
3-1/2	229	35.0	85.7	49.2	49.2	184.0	8	25	140
4	273	38.1	101.6	54.0	54.0	216.0	8	25	157
5	330	44.5	114.3	60.3	60.3	266.5	8	29	186
6	356	47.7	117.5	66.7	66.7	292.0	12	29	216
8	419	55.6	133.4	76.2	76.2	349.0	12	32	270
10	508	63.5	152.4	85.7	115.1	432.0	16	85	324
12	559	66.7	155.6	92.1	111.1	489.0	20	35	381
14	603	69.9	165.1	93.7	117.5	527.0	20	38	413
16	686	76.2	177.8	106.4	127.0	603.0	20	41	470
18	743	82.6	184.2	117.6	139.7	654.0	20	45	533
20	813	88.9	190.5	127.0	165.1	724.0	24	45	584
24	940	101.6	203.2	139.7	184.2	838.0	24	51	692
